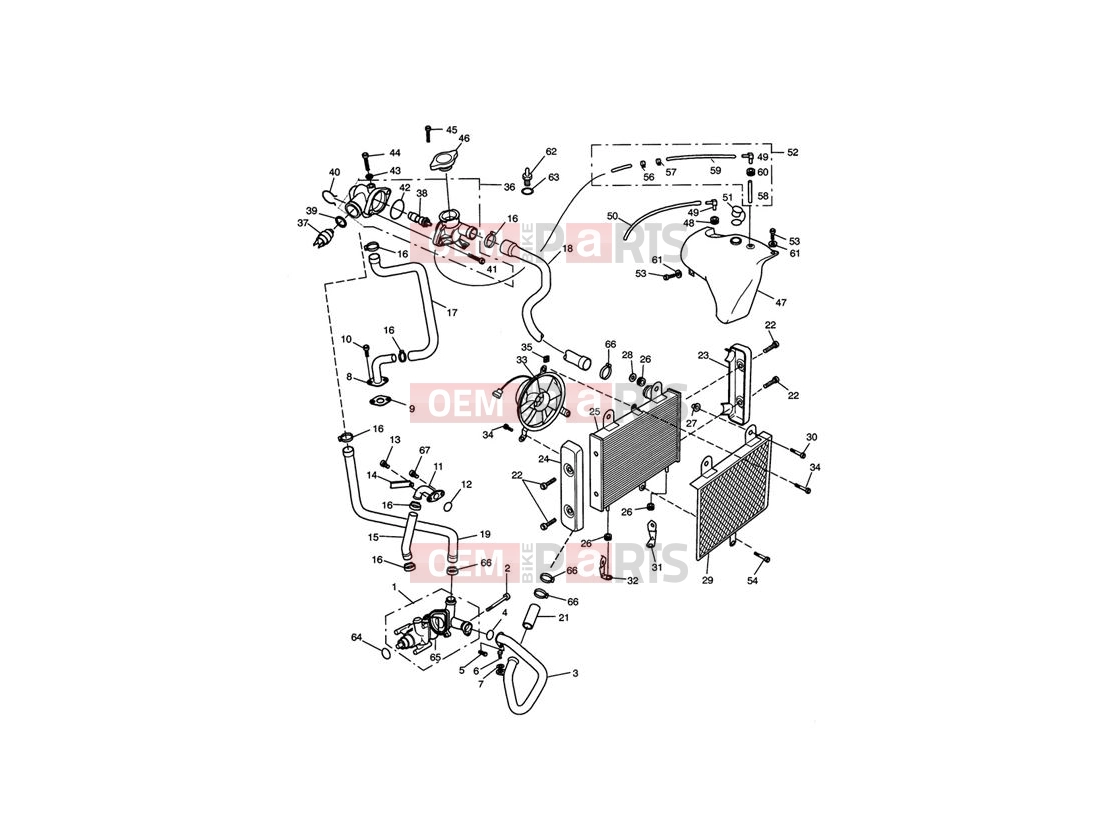

Triumph 1995 THUNDERBIRD Cooling System

Triumph 1995 THUNDERBIRD Cooling System
1
Triumph 1995 THUNDERBIRD Water pump assy
Water pump assy
2
Triumph 1995 THUNDERBIRD Screw
Screw
3
Triumph 1995 THUNDERBIRD Water pipe [Lower]
Water pipe [Lower]
4
Triumph 1995 THUNDERBIRD O-Ring
O-Ring
5
Triumph 1995 THUNDERBIRD Bolt, RHHF, M6x1.0x12, S/S
Bolt, RHHF, M6x1.0x12, S/S
6
Triumph 1995 THUNDERBIRD Bolt, HHF, Lghtd, M8 x 30, Slv
Bolt, HHF, Lghtd, M8 x 30, Slv
7
Triumph 1995 THUNDERBIRD Washer fibre
Washer fibre
8
Triumph 1995 THUNDERBIRD Outlet, Cylinder Head, Chrome
Outlet, Cylinder Head, Chrome
9
Triumph 1995 THUNDERBIRD Gasket
Gasket
10
Triumph 1995 THUNDERBIRD Bolt, M6 x 20
Bolt, M6 x 20
11
Triumph 1995 THUNDERBIRD Elbow
Elbow
11
Triumph 1995 THUNDERBIRD Elbow
Elbow
12
Triumph 1995 THUNDERBIRD O-Ring
O-Ring
12
Triumph 1995 THUNDERBIRD Gasket
Gasket
13
Triumph 1995 THUNDERBIRD Screw
Screw
13
Triumph 1995 THUNDERBIRD Screw, Tx, Pan/HD, M6 x 16, Sl
Screw, Tx, Pan/HD, M6 x 16, Sl
14
Triumph 1995 THUNDERBIRD Bracket
Bracket
14
Triumph 1995 THUNDERBIRD Bracket
Bracket
14
Triumph 1995 THUNDERBIRD Bracket
Bracket
15
Triumph 1995 THUNDERBIRD Hose outlet
Hose outlet
16
Triumph 1995 THUNDERBIRD Hose Clip, 23-25, Bright, Ss
Hose Clip, 23-25, Bright, Ss
17
Triumph 1995 THUNDERBIRD Pipe
Pipe
18
Triumph 1995 THUNDERBIRD Hose top
Hose top
19
Triumph 1995 THUNDERBIRD Pipe
Pipe
19
Triumph 1995 THUNDERBIRD Pipe
Pipe
21
Triumph 1995 THUNDERBIRD Hose bottom
Hose bottom
22
Triumph 1995 THUNDERBIRD Screw
Screw
22
Triumph 1995 THUNDERBIRD Bolt [M5 x 10 >79226]
Bolt [M5 x 10 >79226]
23
Triumph 1995 THUNDERBIRD End cap lh [» 42766 Chrome]
End cap lh [» 42766 Chrome]
23
Triumph 1995 THUNDERBIRD Cover lh [42767 » Black]
Cover lh [42767 » Black]
24
Triumph 1995 THUNDERBIRD End cap rh [» 42766 Chrome]
End cap rh [» 42766 Chrome]
24
Triumph 1995 THUNDERBIRD Cover rh
Cover rh
25
Triumph 1995 THUNDERBIRD Radiator
Radiator
25
Triumph 1995 THUNDERBIRD Radiator
Radiator
26
Triumph 1995 THUNDERBIRD Grommet, Rubber
Grommet, Rubber
27
Triumph 1995 THUNDERBIRD Flanged sleeve [M8]
Flanged sleeve [M8]
28
Triumph 1995 THUNDERBIRD Washer, M8
Washer, M8
29
Triumph 1995 THUNDERBIRD Stone guard
Stone guard
29
Triumph 1995 THUNDERBIRD Stone guard [42767 »  » 71698 Chrome]
Stone guard [42767 » » 71698 Chrome]
30
Triumph 1995 THUNDERBIRD Screw
Screw
31
Triumph 1995 THUNDERBIRD Radiator bracket
Radiator bracket
32
Triumph 1995 THUNDERBIRD Radiator bracket
Radiator bracket
33
Triumph 1995 THUNDERBIRD Fan assembly
Fan assembly
34
Triumph 1995 THUNDERBIRD Screw, P/HD Tx, Shld, M6 x 16,
Screw, P/HD Tx, Shld, M6 x 16,
35
Triumph 1995 THUNDERBIRD Nut, Captive, M6
Nut, Captive, M6
36
Triumph 1995 THUNDERBIRD Thermostat housing
Thermostat housing
37
Triumph 1995 THUNDERBIRD Switch fan
Switch fan
38
Triumph 1995 THUNDERBIRD Thermostat
Thermostat
39
Triumph 1995 THUNDERBIRD O-Ring
O-Ring
40
Triumph 1995 THUNDERBIRD Retainer
Retainer
41
Triumph 1995 THUNDERBIRD Bolt, HHF, M6 X 25, S/S
Bolt, HHF, M6 X 25, S/S
42
Triumph 1995 THUNDERBIRD O-Ring
O-Ring
43
Triumph 1995 THUNDERBIRD Washer, Cu, Od12.5 x Id6.4
Washer, Cu, Od12.5 x Id6.4
44
Triumph 1995 THUNDERBIRD Screw
Screw
45
Triumph 1995 THUNDERBIRD Screw, Pan/Hd, Tx, M6 x 12, Sl
Screw, Pan/Hd, Tx, M6 x 12, Sl
46
Triumph 1995 THUNDERBIRD Cap Assy
Cap Assy
47
Triumph 1995 THUNDERBIRD Coolant reservoir tank
Coolant reservoir tank
48
Triumph 1995 THUNDERBIRD Grommet, Dia 8, Dia 12.5, 3
Grommet, Dia 8, Dia 12.5, 3
49
Triumph 1995 THUNDERBIRD Elbow, ID 8.0 Tube
Elbow, ID 8.0 Tube
50
Triumph 1995 THUNDERBIRD Overflow pipe
Overflow pipe
51
Triumph 1995 THUNDERBIRD Cap, Expansion Tank
Cap, Expansion Tank
52
Triumph 1995 THUNDERBIRD Pipe
Pipe
53
Triumph 1995 THUNDERBIRD Screw, Tx, Pan/HD, M6 x 16, Sl
Screw, Tx, Pan/HD, M6 x 16, Sl
54
Triumph 1995 THUNDERBIRD Screw, Torx PH, M6 x 40, Black
Screw, Torx PH, M6 x 40, Black
56
Triumph 1995 THUNDERBIRD Clip, 10.5 Rer Oetiker
Clip, 10.5 Rer Oetiker
57
Triumph 1995 THUNDERBIRD Clamp (11-12,5 mm)
Clamp (11-12,5 mm)
58
Triumph 1995 THUNDERBIRD Pipe
Pipe
59
Triumph 1995 THUNDERBIRD Pipe, Expansion Tank To T.stat
Pipe, Expansion Tank To T.stat
60
Triumph 1995 THUNDERBIRD Damper
Damper
61
Triumph 1995 THUNDERBIRD Washer, 6.5 x 20 x 2
Washer, 6.5 x 20 x 2
62
Triumph 1995 THUNDERBIRD Sensor temperature
Sensor temperature
63
Triumph 1995 THUNDERBIRD Sealing Washer, M10
Sealing Washer, M10
64
Triumph 1995 THUNDERBIRD O-Ring (Water Pump)
O-Ring (Water Pump)
65
Triumph 1995 THUNDERBIRD Gasket
Gasket
66
Triumph 1995 THUNDERBIRD Clip, Hose, 20-32, Bright, Ss
Clip, Hose, 20-32, Bright, Ss
67
Triumph 1995 THUNDERBIRD Screw, Tx, Pan/HD, M6 x 16, Sl
Screw, Tx, Pan/HD, M6 x 16, Sl
67
Triumph 1995 THUNDERBIRD Screw, Pan/Hd, Tx, M6 x 12, Sl
Screw, Pan/Hd, Tx, M6 x 12, Sl
68
Triumph 1995 THUNDERBIRD Coolant, OAT, Premix, D2053,12 x 1L
Coolant, OAT, Premix, D2053,12 x 1L

Triumph 1995 THUNDERBIRD Cooling System

Triumph 1995 THUNDERBIRD

VIN:
SMTTC339
